      Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R2902A ?














      The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.













      Illuminated Push Button Switches R2902A










      •  Pole-Position：Momentary Type,SPST With LED


      •  Contact Rating：30VDC,0.1A


      •  Contact Resistance：By Method of Voltage Drop


      •  Insulation Resistance：


      •  Dielectric Strength：500 VAC for 1 Minute


      •  Operating Force：250±100gf


      •  Operating Life：50,000 cycles


      •  Operating Temperature Range：-40℃ ~ 85℃


      •  Total Travel：1.2±0.3mm

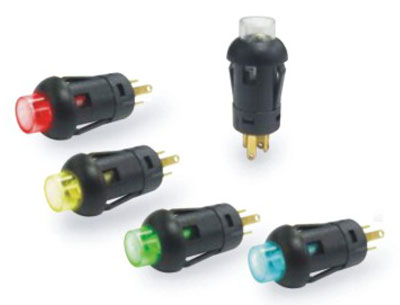

	  Illuminated Push Button Switches R2902A Figure

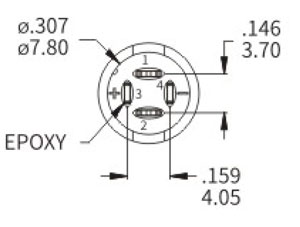

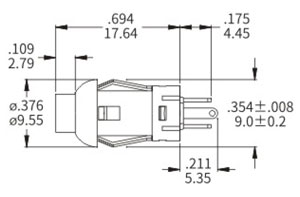

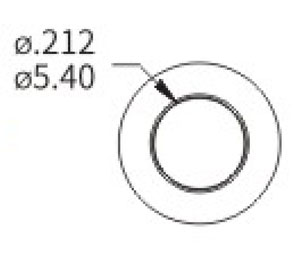

	 Illuminated Push Button Switches R2902A Structure Diagram      Switch R2902A Structure Diagram      R2902A Structure Diagram


















                                Part Number
                                Pole-Position
                                Contact Rating
                                Contact Resistance
                                Dielectric Strength
                                Operating Force
                                Operating Life
                                Operating Temperature Range
                                Total Travel
                                Download




                                R2902A-XX-XX
                                Momentary Type,SPST With LED
                                30VDC,0.1A
                                By Method of Voltage Drop
                                500 VAC for 1 Minute
                                250±100gf
                                50,000 cycles
                                -40℃ ~ 85℃
                                1.2±0.3mm

                    NULL




                                R2902A-K(Non-LED)
                                Momentary Type,SPST With LED
                                30VDC,0.1A
                                By Method of Voltage Drop
                                500 VAC for 1 Minute
                                250±100gf
                                50,000 cycles
                                -40℃ ~ 85℃
                                1.2±0.3mm

                    NULL



















		Open
