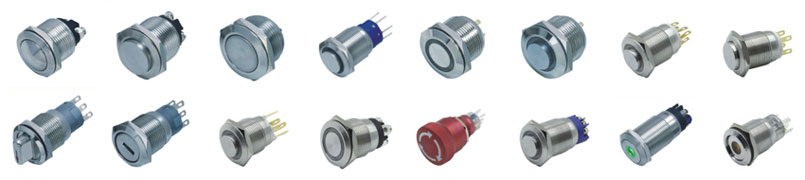

• RD19-A2 • RD19-A3
• RD19-B1 • RD19-C2
• RD19-D1 • RD19-D2
• RD19-E2 • RD19-E6
• RD19-F1 • RD19-F2
• RD19-G2 • RD19-H1
• RD19-J • RD19-L2
• RD19-L3 • RD19-S3
• RD19-S4 • RD19-S5
|
 |
| Part Number | Mounting Hold Size | Switch Rating | Switch Combination | Operation Types | Head Shape | Enclosure Material | Degree of protection | Lamp Type | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| RD19-A2 | φ19mm | 3A/250VAC | 1NO | Resetable | Round | Nickel plated brass/Stainless stell | IP65,IK08 | / | 暫無 |
| RD19-A3 | φ19mm | 3A/250VAC | 1NO | Resetable | High Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | 暫無 |
| RD19-B1 | φ19mm | 3A/250VAC | 1NO | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | 暫無 |
| RD19-C2 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | 暫無 |
| RD19-D1 | φ19mm | 3A/250VAC | 1NO | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | 暫無 |
| RD19-D2 | φ19mm | 3A/250VAC | 1NO | Resetable | High Flat | Nickel plated brass/Stainless stell | IP65,IK08 | Ring Illuminated | 暫無 |
| RD19-E2 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | 暫無 |
| RD19-E6 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | 暫無 |
| RD19-F1 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | 暫無 |
| RD19-F2 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | 2 Posilton 3 Posilton | Key | Nickel plated brass/Stainless stell | IP50,IK10 | / | 暫無 |
| RD19-G2 | φ19mm | 50mA/36VDC | 1NO | Resetable Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | 暫無 |
| RD19-H1 | φ19mm | 5A/250VAC | 1NO | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | 暫無 |
| RD19-J | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | 2 Posilton | Round | Aluminum plated color/Stainless stell | IP67,IK10 | / | 暫無 |
| RD19-L2 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | 暫無 |
| RD19-L3 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Dot Illuminated | 暫無 |
| RD19-S3 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Dot Illuminated | 暫無 |
| RD19-S4 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Character Illuminated | 暫無 |
| RD19-S5 | φ19mm | 5A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | 暫無 |
