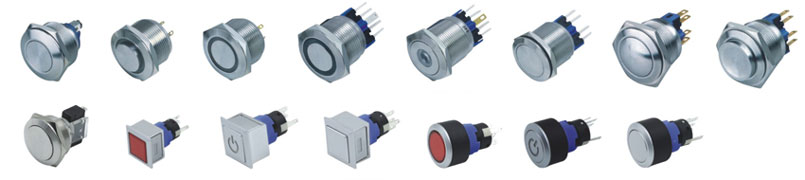

• RN22-A1 • RN22-A2
• RN22-B1 • RN22-B2
• RN22-B3 • RN22-C1
• RN22-D1 • RN22-D2
• RN22-E • RN22-G1
• RN22-G2 • RN22-G3
• RN22-F1 • RN22-F2
• RN22-F3
|
 |
| Part Number | Mounting Hold Size | Switch Rating | Operation Types | Head Shape | Enclosure Material | Degree of protection | Lamp Type | Head Color | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| RD22-A1 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | / | 暫無 |
| RD22-A2 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Dot Illuminated | / | 暫無 |
| RD22-B1 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | / | 暫無 |
| RD22-B2 | φ22mm | 5A/250VAC | Resetable Self-locking | Round | Nickel plated brass/Stainless stell | IP67,IK10 | / | / | 暫無 |
| RD22-B3 | φ22mm | 5A/250VAC | Resetable Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | / | 暫無 |
| RD22-C1 | φ22mm | 5A/250VAC | Resetable | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | / | 暫無 |
| RD22-D1 | φ22mm | 5A/250VAC | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK10 | Ring Illuminated | / | 暫無 |
| RD22-D2 | φ22mm | 5A/250VAC | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK10 | Ring Illuminated | / | 暫無 |
| RD22-E | φ22mm | 5A/250VAC | Resetable | Flush | Nickel plated brass/Stainless stell | IP65,IK10 | Ring Illuminated | / | 暫無 |
| RD22-G1 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | PA66 | IP40,IP65 | / | R/O/Y/G/B/W | 暫無 |
| RD22-G2 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | PA66 | IP40,IK65 | Character Illuminated | / | 暫無 |
| RD22-G3 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | PA66 | IP40,IP65 | / | / | 暫無 |
| RD22-F1 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | PA66 | IP40,IP65 | / | R/O/Y/G/B/W | 暫無 |
| RD22-F2 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | PA66 | IP40,IK65 | Character Illuminated | / | 暫無 |
| RD22-F3 | φ22mm | 5A/250VAC | Resetable Self-locking | Flat | PA66 | IP40,IP65 | / | / | 暫無 |
