        The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

      The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.













      Dust-proof Tactile Switches R2996










      •  Rating：12VDC 50mA


      •  Travel：1.5±0.3mm


      •  Life：100,000 cycles


      •  Contact Resistance：100mΩ MAX Initial


      •  Insulation Resistance：100mΩ min. 100VDC


      •  Dielectric Strength：250VAC(50/60Hz)FOR 1MIN


      •  Operating Force：135±50gf 300±80gf 400± 80gf

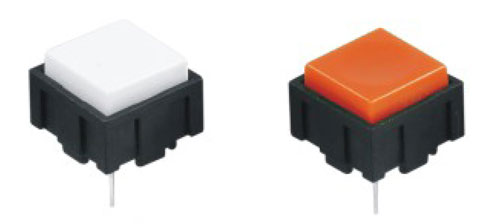

	 Dust-proof Tactile Switches Figure R2996

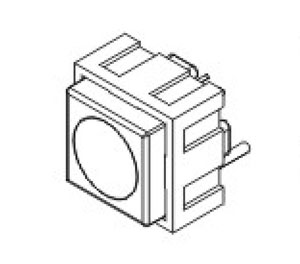

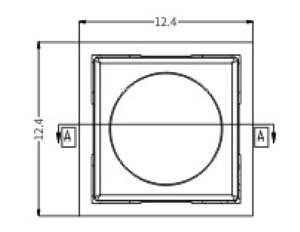

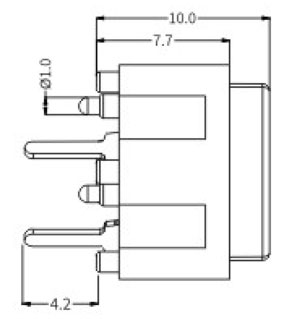

	Tactile Switches Structure Diagram R2996  Switches Structure Diagram R2996      Switch Structure Diagram R2996


















                                Part Number
                                Rating
                                Contact Resistance
                                Insulation Resistance
                                Dielectric Strength
                                Operating Force
                                Travel
                                Life
                                Download




                                R2996-1-X-X-X-B
                                12VDC 50mA
                                100mΩ MAX Initial
                                100mΩ min. 100VDC
                                250VAC(50/60Hz)FOR 1MIN
                                135±50gf 300±80gf 400± 80gf
                                1.5±0.3mm
                                100,000 cycles

                    NULL



















		Open
