      Home ? Product Center ? Other ? Switch ? Tactile Switch ? RTR-85/12 ?
      The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.
      The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.
      Dust-proof Tactile Switches RTR-85/12

      •  Rating12VDC 50mA
      •  Contact Resistance100mΩ Max initial
      •  Insulation Resistance:100mΩ 500VAC for 1min
      •  Dielectric Strength250VAC(50/60Hz) for 1min
      •  Operating Force300±100gf   400±100gf
      •  Mechanical Life1,000,000 cycles   10,0000 cycles
      •  Travel:0.5±0.3mm(CTR-12)   0.8±0.2mm(CTR-8)

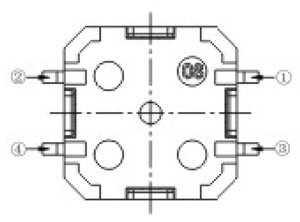

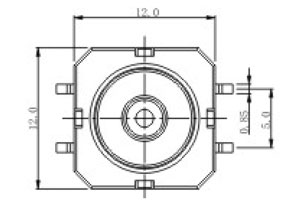

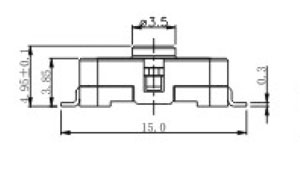

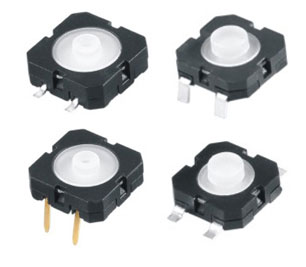

                  RTR-85/12 Figure           RTR-85/12 Structure Diagram      Dust-proof Tactile Switches Structure Diagram RTR-85/12     Switch Structure Diagram RTR-85/12



      Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Mechanical Life Travel Download
      RTR-12-M-9-X-V 12VDC 50mA 100mΩ Max initial 100mΩ 500VAC for 1min 250VAC(50/60Hz) for 1min 300±100gf 400±100gf 1,000,000 cycles 10,0000 cycles 0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8) NULL
      RTR-12-C-9-X-V 12VDC 50mA 100mΩ Max initial 100mΩ 500VAC for 1min 250VAC(50/60Hz) for 1min 300±100gf 400±100gf 1,000,000 cycles 10,0000 cycles 0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8) NULL
      RTR-85-H-4-X-V 12VDC 50mA 100mΩ Max initial 100mΩ 500VAC for 1min 250VAC(50/60Hz) for 1min 300±100gf 400±100gf 1,000,000 cycles 10,0000 cycles 0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8) NULL
      RTR-85-M-4-X-V 12VDC 50mA 100mΩ Max initial 100mΩ 500VAC for 1min 250VAC(50/60Hz) for 1min 300±100gf 400±100gf 1,000,000 cycles 10,0000 cycles 0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8) NULL
