      Home ? Product Center ? Other ? Switch ? Tactile Switch ? R10 ?










        The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

      The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.













      Mini Horizontal Push Tactile Switches R10










      •  Rating：12VDC 50mA


      •  Travel：10.13mm


      •  Life：1100,000 cycles


      •  Contact Resistance：1100mΩ MAX Initial


      •  Insulation Resistance：1100mΩ min. 100VDC


      •  Dielectric Strength：1250VAC(50/60Hz)FOR 1MIN


      •  Operating Force：12=180gf 3=260gf


      •  Operating Temperature：1-30℃ ~70℃

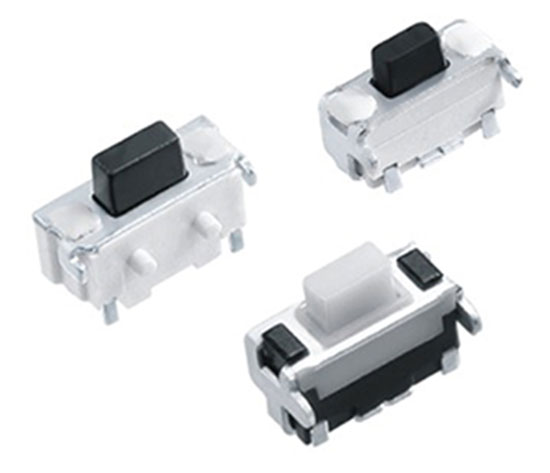

	  Mini Horizontal Push Tactile Switches R10 Figure

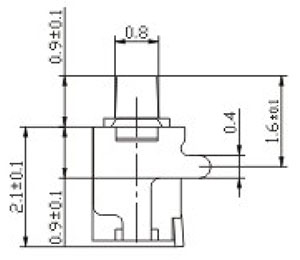

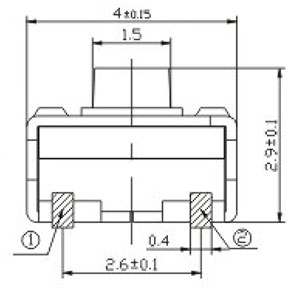

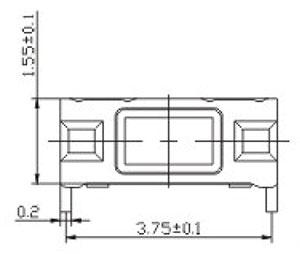

	     Mini Horizontal Push Tactile Switches R10 Structure Diagram    Tactile Switches R10 Structure Diagram      R10 Structure Diagram


















                                Part Number
                                Rating
                                Contact Resistance
                                Insulation Resistance
                                Dielectric Strength
                                Operating Force
                                Travel
                                Life
                                Operating Temperature
                                Download




                                R10-2030-29-180
                                12VDC 50mA
                                100mΩ MAX Initial
                                100mΩ min. 100VDC
                                250VAC(50/60Hz)FOR 1MIN
                                2=180gf 3=260gf
                                0.13mm
                                100,000 cycles
                                -30℃ ~70℃

                    NULL




                                R10-2030-25-180
                                12VDC 50mA
                                100mΩ MAX Initial
                                100mΩ min. 100VDC
                                250VAC(50/60Hz)FOR 1MIN
                                2=180gf 3=260gf
                                0.13mm
                                100,000 cycles
                                -30℃ ~70℃

                    NULL




                                R10-2040-G1
                                12VDC 50mA
                                100mΩ MAX Initial
                                100mΩ min. 100VDC
                                250VAC(50/60Hz)FOR 1MIN
                                2=180gf 3=260gf
                                0.13mm
                                100,000 cycles
                                -30℃ ~70℃

                    NULL




                                R10-2446
                                12VDC 50mA
                                100mΩ MAX Initial
                                100mΩ min. 100VDC
                                250VAC(50/60Hz)FOR 1MIN
                                2=180gf 3=260gf
                                0.13mm
                                100,000 cycles
                                -30℃ ~70℃

                    NULL



















		Open
